Lift and Shift Solutions

Toe/Side Lifting Jack









PURPOSE:



Use these products wherever heavy objects or loads have to be moved. The load can be lifted using Toe Jacks and thereby allowing transport trolleys to be easily positioned or pushed under the load.



LIFE SOLUTIONS:

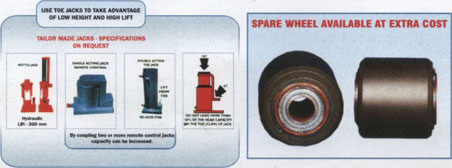

iUse Vankos Hydraulic Toe Jacks to Lift Heavy Loads Safely and Accurately from very low heights

SHIFT SOLUTIONS:



Shift (or Transport or Move) Heavy Load using Vankos Transport Trolleys.



Type A and Type B Models available.



Type - A : To Move Load by Steering

Type - B : Load Pads are Lateral Adjustable

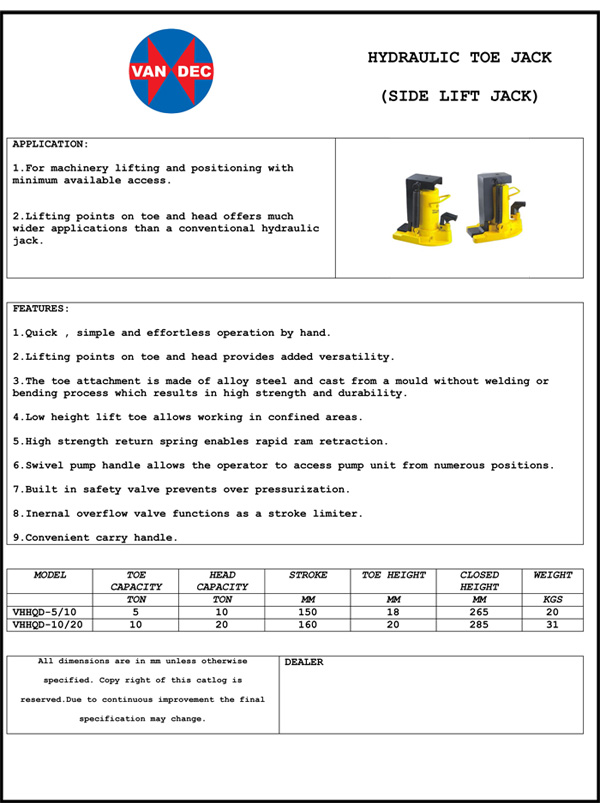

Hydraulic Toe Jack



Model Capacity on TOE Capacity on Head TOE Height, M Lift B Closed Jack Height, A Base Size L x W
  Tonnes Tonnes MM MM MM MM x MM
SSL - TOE - 5/10 5 10 32 150 258 180 x 210

SSL-TOE - 7.5/15

7.5 15 37 150 275 200 x 240
SSL-TOE - 10/20 10 20 40 150 285 225 x 245
SSL-TOE - 15/30 15 30 42 150 303 240 x 305



Transport Trolleys - Type A

 Model   VTT3A VTT6A VTT9A VTT12A
 Capacity  Tonnes 3 6 9 12
 Loading Height  MM 110 110 110 110
 No. of Roller  No. 4 8

12

16
 Length x Width  MM x MM 272 x 228 612 x 522 820 x 605 995 x 605
 Handle Length  MM 965 1075 1075 1075
 Weight  Kgs. 16 44 55 74

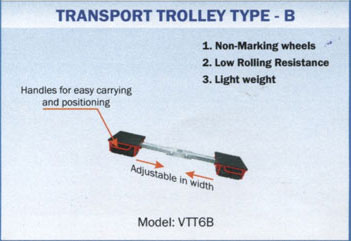

Transport Trolleys - Type B

 Model   VTT3B VTT6B VTT9B VTT12B
 Capacity  Tonnes 3 6 9 12
 Loading Height  MM 110 110 110 110
 No. of Roller  No. 4 8

12

16
 Top Tubber Pad area L x W  MM x MM  150 x 150  205 x 205  185 x 175  205 x 205
 Length Adjustable from  MM 305-995 625-1305 605-1410 745-1510
 Weight  Kgs. 15 31 34 46

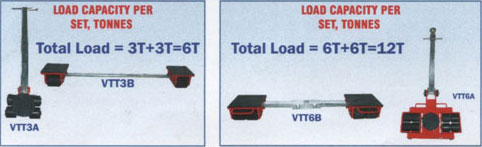

Load Capacity Per Set (Type A + Type B)

 Model VTT3A + VTT3B VTT6A + VTT6B VTT9A + VTT9B VTT12A + VTT12B
 Load Capacity Per Set, Tonnes  6 12 18 24
